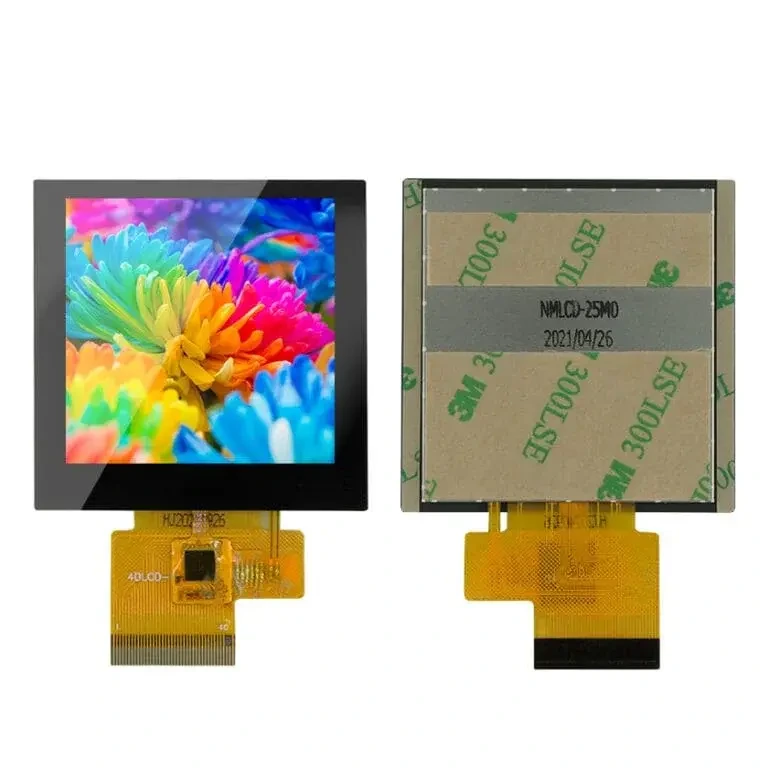

2.6-Inch 240x240 TFT LCD Touch Screen Module, 300 Nits Brightness, Capacitive Touch for Embedded Systems & DIY Projects
Designed for applications where size, durability, and clarity are critical. This 2.6-inch capacitive touch screen is your go-to for next-generation user interfaces.
Why This Display is Right for Your Application:
◈ Solve Space Constraints: The compact form factor fits where larger displays cannot, ideal for handheld test equipment and portable medical devices.
◈ Ensure Readability and Durability: The 240x240 resolution provides sharp visuals, while the 6H-hardness glass cover resists scratches in industrial settings.
◈ Guarantee Performance in Extreme Conditions: With an operating range from -20°C to +70°C, it performs reliably in both freezing and high-temperature environments.
◈ Accelerate Development: The standard SPI interface and ST7789 driver allow for easy prototyping and integration, reducing time to market.
◈ Meet Green Standards: As a RoHS-compliant component, it helps you comply with international environmental regulations.
The RT026Z1P-300-40 is a 2.6-inch TFT LCD display module built to deliver exceptional visual performance and reliability for industrial, embedded, and IoT applications. With a high resolution of 240×240 pixels and RGB vertical stripe arrangement, it ensures sharp imagery and vibrant color reproduction—ideal for user interfaces, status monitoring, and interactive devices.
Key Features & Specifications
● Display Size: 2.6 inches
● Resolution: 240 (RGB) × 240 pixels
● Touch Technology: G+F structure with 6H surface hardness
● Operating Temperature: -20°C to +70°C
● Driver IC: ST7789 (SPI interface)
● Touch IC: FT6336U (supports multi-touch)
● Backlight: White LED
● Viewing Angles: Wide viewing angle
● Dimensions: 42.7mm × 51.35mm × 2.2mm
● Compliance: RoHS
Ideal for Use In
● Industrial control panels & HMIs
● IoT devices and smart embedded systems
● Portable instruments and handheld equipment
● Outdoor and environmental monitoring displays
● Home automation and smart appliance interfaces
Specifications
| ltem | Specification | Unit |
| LCD Size | 2.6 | inch |
| Display Mode | Normally white | -- |
| Resolution | 240(RGB) x 240 | Pixel |
| Pixel Pitch | 0.18(H) x 0.18(V) | mm |
| Pixel Arrangement | RGB Vertical stripe | -- |
| Viewing Direction | ALL O'clock | -- |
| Module Outline Dimension | 42.7(W) x 51.35(L) x 2.2(T) | mm |
| LCD AA | 43.3(W) x 43.2(L) | mm |
| TP VA | 44(W) x 44(L) | mm |
| Colors | 16.7M | -- |
| Weight | -- | g |
| Driver IC | ST7789t3 | -- |
| Driver IC RAM Size | -- | -- |
| Interface | SPI | -- |
| Backlight | White LED | -- |
| Touch IC | FT6336U | -- |
| Surface Hardness | 6H | -- |
| Support Points | Multi-Touch | -- |
| Touch Structure | G+F | -- |
| Cover Lens | -- | -- |
| Colors | -- | -- |
| Operating Temperature | -20°C~+70°C | -- |
| Storage Temperature | -30°C~+80°C | -- |
| Environmental Requirements | ROHS | -- |
Why Choose the RT026Z1P-300-40?
Engineered for durability and ease of integration, this display module combines a scratch-resistant touch surface, reliable wide-temperature operation, and compact form factor. Its SPI interface and capable touch controller simplify development, while the RoHS-compliant design supports environmentally conscious manufacturing.
Whether you're designing for harsh industrial settings or compact consumer devices, the RT026Z1P-300-40 offers a robust, high-quality display solution ready to meet modern engineering challenges.
