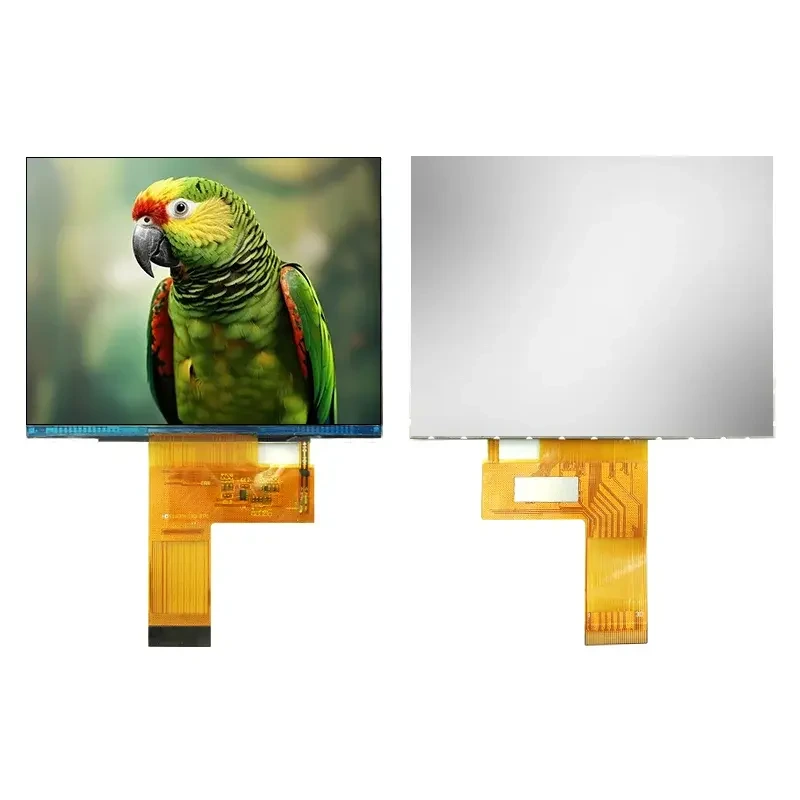

Industrial-Grade 4.16-Inch LCD Display High-Brightness, 1280x960 Resolution for HMI/Medical Devices
- Size: 4.16 inch TFT LCD
- Resolution: 1280 × 960 pixels
- Interface: MIPI, RGB vertical stripe
- View Angle: All-direction (wide viewing)
Meet the RJY 4.16-inch TFT LCD module—a compact, high-performance display solution engineered for devices where space is limited, but visual clarity and reliability are non-negotiable. It combines a sharp 1280×960 resolution with a streamlined MIPI interface, making it the ideal choice for advanced portable devices, medical visualization systems, industrial HMIs, and next-generation smart interfaces.
Key Features & Direct Benefits
✔ High-Definition Visuals with Exceptional Density
• Feature: 1280×960 resolution at a 0.066mm pixel pitch.
• Your Advantage: Enjoy exceptionally crisp, razor-sharp images perfect for rendering complex graphics, dense data, and intricate user interface elements without blur or pixelation.
✔ Wide Viewing Angles for Consistent Clarity
• Feature: Advanced IPS-Like technology.
• Your Advantage: Maintains color accuracy and image integrity across virtually any viewing angle. Essential for devices shared by multiple users or operated from various positions.
✔ High-Speed Data Transfer with Simplified Design
• Feature: Integrated MIPI (DSI) interface.
• Your Advantage: Achieve high-speed video transmission with reduced connector complexity and a simpler board layout. This enables faster integration with modern processors and a more compact overall design.
✔ Robust & Slim Form Factor
• Feature: A slim 3.8mm profile with a rugged build.
• Your Advantage: Integrate seamlessly into tight spaces of handheld or embedded devices without compromising on durability or performance.
✔ Built for Challenging Environments
• Feature: Stable operation from -20°C to +70°C.
• Your Advantage: Dependable performance in industrial settings, semi-outdoor applications, or environments with fluctuating temperatures.
✔ Enhanced Interactivity on Demand
• Feature: Optional Projected Capacitive (PCAP) Touch Panel.
• Your Advantage: Enable intuitive, multi-touch gestures and a superior user experience for interactive applications.
Specification
| Parameter | Specification |
| LCD Size | 4.16 inch (Diagonal) |
| Display Mode | Normally Black |
| Resolution | 1280(RGB) x 960 pixels |
| Pixel Pitch | 0.066(H) x 0.066(v)mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | All viewing directions (Ultra-wide) |
| Module outline | 90.86(H) x 72.84(V) x 3.8(D)mm |
| Active Area(AA) | 48.6(H) x 64.8(v)mm |
| Colors | 16.7 million colors (8-bit depth) |
| Interface | MIPl (High-speed serial) |
| Driver IC | GH7005-01 |
| Backlight | White LED |
| Touch Panel | Capacitive touch (optional) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30°C to +80°C |
| Compliance | RoHS |
Ideal for Powering Your Next-Generation Devices
This module is specifically suited for applications that demand a premium visual experience in a compact form factor:
● Medical & Healthcare: Portable diagnostic equipment, medical imaging terminals, patient monitoring devices.
● Industrial Technology: Handheld testers, data loggers, compact HMI panels, industrial control systems.
● Professional Consumer Electronics: Smart home central controllers, advanced portable gadgets, high-end instrumentation.
● Transportation & Fleet: Portable monitoring systems, navigation interfaces.
Your Vision, Customized to Perfection
At RJY Display, we understand that standard isn't always enough. We offer comprehensive customization services to ensure the display fits your product perfectly:
● Optical Bonding: Eliminate internal reflection, enhance sunlight readability, and improve durability.
● Custom Touch Solutions: PCAP integration with support for various cover lens materials (Glass, PMMA), including custom logos, prints, and anti-glare treatments.
● Mechanical Adaptations: Tailored FPC designs (direction, length, pin count) and custom brackets or frames for seamless integration into your assembly.
● Electrical Tuning: Interface optimization to match your specific mainboard and SoC requirements.
Ready to Integrate a Superior Display Solution?
Contact the RJY Display team today to discuss your project requirements, request samples, or get a personalized quote. Let us help you bring your sharpest ideas to life.
