Product details of the projected capacitive touch screen
Product Information
Made of premium quality materials, RJY display projected capacitive touch screen is manufactured as per the norms of the industry. The product meets with the international quality standards, which has been approved by the international certificates. For Shenzhen Rongjiayi Technology Co., Ltd., we always focus on innovation and upgrading of product strength.
Product Description

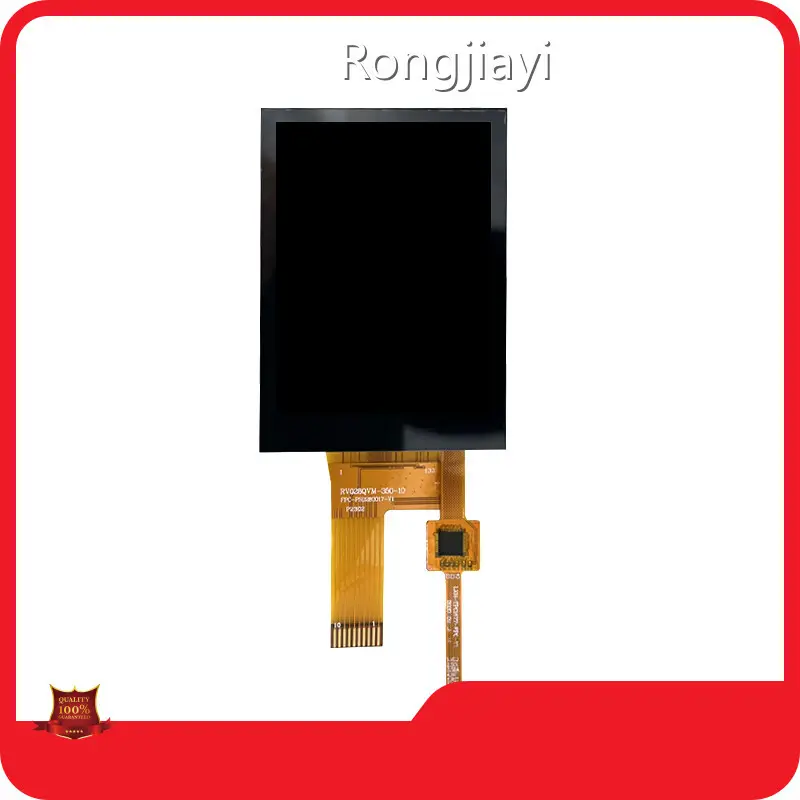

Unveiling the RJY 1.69 Inch 240*280 TFT LCD Display, featuring the model name RV028QVP-350-10.
This display, with a 2.8-inch TFT LCD type and a resolution of 240320, is designed to deliver exceptional visual performance in a compact form factor.
With advanced features and a versatile interface, it caters to a wide range of electronic applications.
Product Features
1. Compact Form Factor: Despite its 2.8-inch size, this display offers a high resolution of 240*320, providing clear and vibrant visuals within a compact design.
2. Full Wide Viewing Angle (IPS): Leveraging Full Wide Viewing Angle (IPS) technology, the display ensures excellent visibility from various angles, enhancing user experience across different scenarios.
3. Driver IC - ST7789: Equipped with the reliable ST7789 driver IC, the display guarantees smooth and stable performance, delivering high-quality graphics and images.
4. SPI Interface: The SPI interface provides a versatile and customizable connection, allowing seamless integration into a variety of electronic projects with specific requirements.
5. Advanced Touch Technology: Featuring the FT6336U touch IC and a G+F touch structure, this display provides an advanced and responsive touch experience, enhancing user interaction in applications that require touch input.
|
Model |
RV028QVP-350-10 |
|
Size |
2.8 inch TFT LCD module |
|
Display Mode |
Normally Black |
|
Resolution |
240(RGB)x320 |
|
Pixel pitch |
0.18(H) x 0.18(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
50 (H)*69.02 (V)*2.30(D) |
|
LCD AA |
43.2 (H)* 57.6 (V) |
|
TP VA |
43.6 (H)* 58.05 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7789 |
|
Interface |
SPI |
|
Backlight |
White LED |
|
Touch IC |
FT6336U |
|
Surface hardness |
6H |
|
Touch structure |
G+F |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
