Lcd Panel Makers RJY Display Brand-1
Product details of the lcd panel makers
Product Description
Any color and any size are available for lcd panel makers. As we have a team of quality controllers for checking the quality of every production stage, the product is bound to be of high quality. The potential value of the product makes it applicable in multiple scenarios.
Product Description

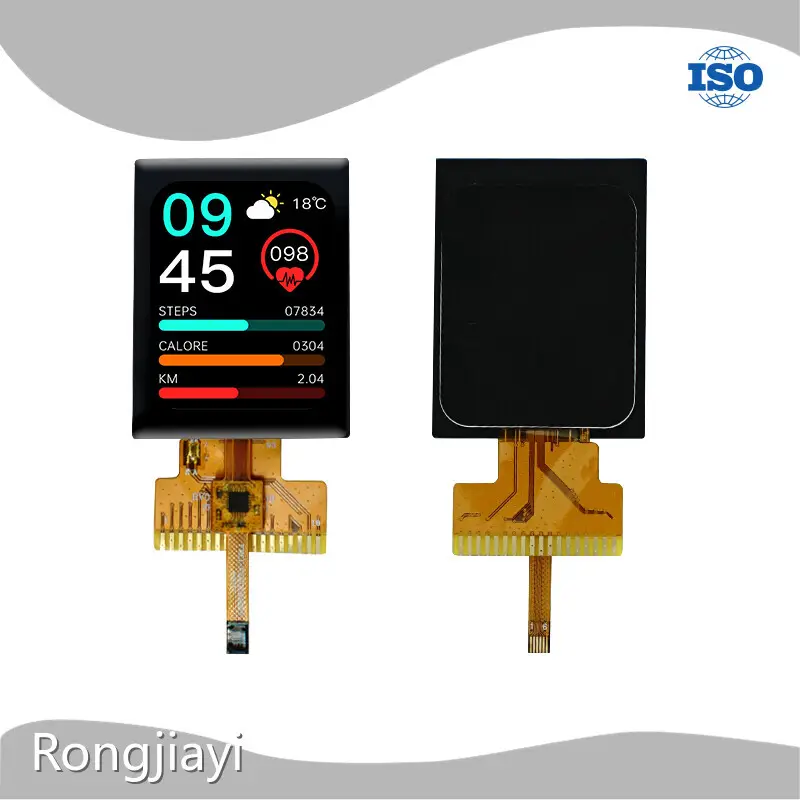

Presenting the RJY 1.69 Inch 240*280 TFT LCD Display, identified by the model name RV017YJP-500-18.
This display is engineered for superior visual performance, utilizing advanced technology to cater to a diverse range of application needs.
With a high-resolution screen, wide viewing angles, and customizable features, it stands out as a versatile solution for various electronic projects.
Product Features
1.High Resolution: This display panel boasts a high resolution of 240*280, ensuring clear and detailed images across a variety of applications.
2.Full Wide Viewing Angle (IPS): Utilizing Full Wide Viewing Angle (IPS) technology, it offers exceptional visibility from different angles, suitable for diverse user scenarios.
3.Driver IC - ST7789: Equipped with the ST7789 driver IC, ensuring outstanding performance and stability, guaranteeing smooth and detailed visuals.
4.SPI Interface: With an SPI interface, it provides high flexibility and customizability, making it adaptable to specific requirements of various projects.
5.Touch Structure - G+F: Featuring a G+F touch structure, it delivers an intuitive and responsive touch experience, enhancing user interaction with the device.
|
Model |
RV017YJP-500-18 |
|
Size |
1.69 inch LCD Module |
|
Display Mode |
Normally Black |
|
Resolution |
240(RGB)x280 |
|
Pixel pitch |
38.85(H)×3×116.55(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
30.7 (H)*37.43 (V)*2.30(D) |
|
LCD AA |
27.97 (H)* 32.63 (V) |
|
TP VA |
28.57*33.23 |
|
Colors |
16.7M |
|
Driver IC |
ST7789 |
|
Interface |
SPI |
|
Backlight |
White LED |
|
Touch IC |
CST816D |
|
Touch structure |
G+F |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
|
Power Supply voltage 1 |
VCI~GND: -0.3-4.6v |
|
Power Supply voltage 2 |
IOVCC~GND: -0.3-4.6v |
|
Logic Input Voltage Range |
VIN: -0.3- IOVCC+0.5v |
|
Logic Output Voltage Range |
VO: -0.3- IOVCC+0.5v |
|
Luminance |
500 cd/㎡ |
