Product Description

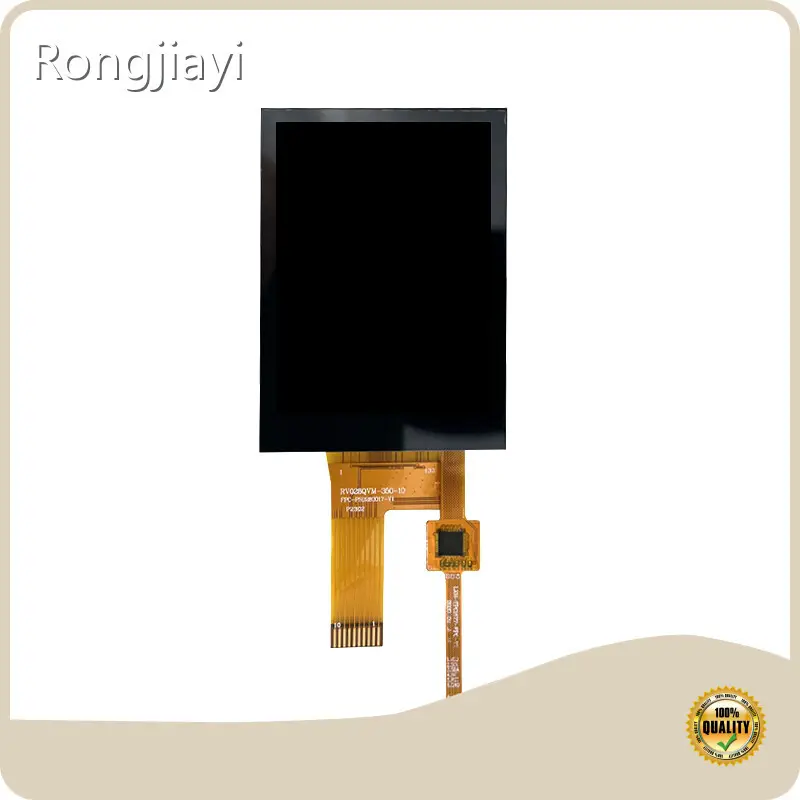

Unveiling the RJY 1.69 Inch 240*280 TFT LCD Display, featuring the model name RV028QVP-350-10.
This display, with a 2.8-inch TFT LCD type and a resolution of 240320, is designed to deliver exceptional visual performance in a compact form factor.
With advanced features and a versatile interface, it caters to a wide range of electronic applications.
Product Features
1. Compact Form Factor: Despite its 2.8-inch size, this display offers a high resolution of 240*320, providing clear and vibrant visuals within a compact design.
2. Full Wide Viewing Angle (IPS): Leveraging Full Wide Viewing Angle (IPS) technology, the display ensures excellent visibility from various angles, enhancing user experience across different scenarios.
3. Driver IC - ST7789: Equipped with the reliable ST7789 driver IC, the display guarantees smooth and stable performance, delivering high-quality graphics and images.
4. SPI Interface: The SPI interface provides a versatile and customizable connection, allowing seamless integration into a variety of electronic projects with specific requirements.
5. Advanced Touch Technology: Featuring the FT6336U touch IC and a G+F touch structure, this display provides an advanced and responsive touch experience, enhancing user interaction in applications that require touch input.
|
Model |
RV028QVP-350-10 |
|
Size |
2.8 inch TFT LCD module |
|
Display Mode |
Normally Black |
|
Resolution |
240(RGB)x320 |
|
Pixel pitch |
0.18(H) x 0.18(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
50 (H)*69.02 (V)*2.30(D) |
|
LCD AA |
43.2 (H)* 57.6 (V) |
|
TP VA |
43.6 (H)* 58.05 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7789 |
|
Interface |
SPI |
|
Backlight |
White LED |
|
Touch IC |
FT6336U |
|
Surface hardness |
6H |
|
Touch structure |
G+F |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
Company Advantages
· The material for pcap touch screen manufacturers is of high quality.
· With the innovative and creative functions, this product shows the charm of art.
· Shenzhen Rongjiayi Technology Co., Ltd.'s capital is abundant and it has independent R&D team.
Company Features
· Shenzhen Rongjiayi Technology Co., Ltd., with accumulated rich experience in R&D and producing of pcap touch screen manufacturers, becomes one of the major suppliers in this field.
· The quality of pcap touch screen manufacturers is guaranteed by the modern technology.
· Our high quality pcap touch screen manufacturers will definitely reach your expectation. Inquiry!
Application of the Product
The pcap touch screen manufacturers developed by our company can be applied in different fields.
We have been engaged in the production and management of TFT LCD Display、Touch Screen for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
Shenzhen Rongjiayi Technology Co., Ltd., founded in 2014, has emerged as a prominent national high-tech enterprise, showcasing its prowess in research, development, design, and production.
