Rongjiayi-High-tech LCD display manufacturer with research, development, design since 2014.
RJY Display Lcd Mipi / Eries
Company Advantages
· Such material provides very long service life for lcd mipi.
· The long-lasting and stable performance makes this product a great advantage in the industry.
· The product has gained a high reputation globally thanks to its huge economic benefits.
Product Description

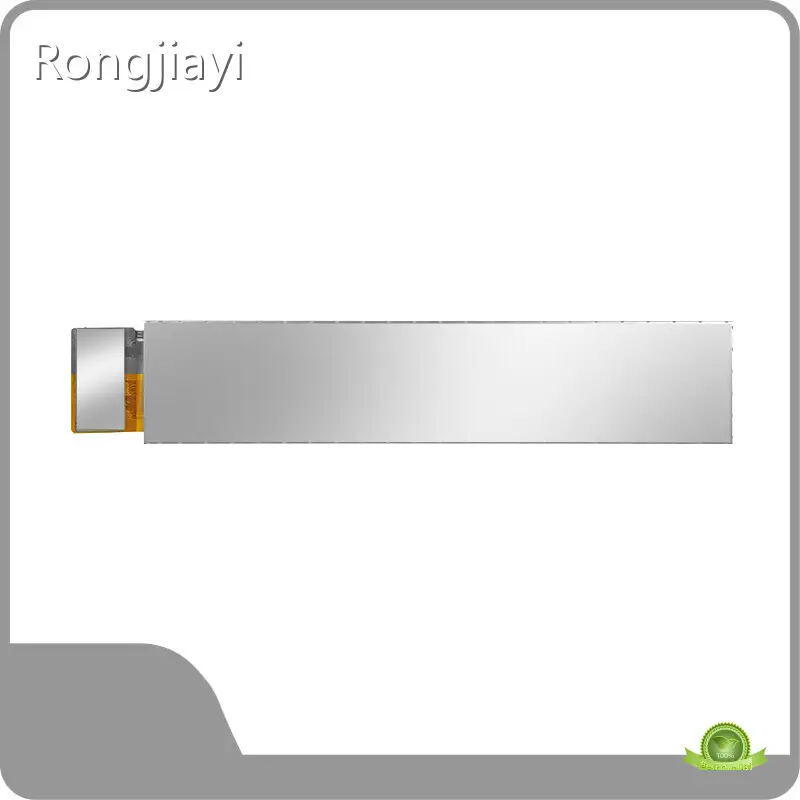

This display is designed to transform visual experiences with its unique stretched bar design, offering a perfect blend of aesthetics and functionality for diverse applications.
Product Features
1.Innovative Stretched Bar Design: The 6.9-inch stretched bar form factor introduces a new dimension to displays, making it an ideal choice for applications where space optimization and visual innovation are crucial.
2.Vivid Visuals with High Resolution (280*1424): Immerse yourself in stunning visuals with the high-resolution display, ensuring clarity and precision in showcasing content across a diverse range of applications.
3.Full Wide Viewing Angle (IPS): Embrace consistent and vibrant colors from any viewing angle, courtesy of Full Wide Viewing Angle (IPS) technology, enhancing the overall user experience.
4.Adaptive Brightness (TBD): The display's brightness, yet to be determined, adapts dynamically to ambient light conditions, ensuring optimal visibility and readability in varying environments.
5.MIPI Interface with ST7703I Driver IC: The combination of MIPI interface and ST7703I driver IC provides a robust and high-speed connection, facilitating seamless data transfer and ensuring smooth, responsive interactions for your electronic projects.
|
Model |
RV069LFM-350-40 |
|
LCD size |
6.90 inch TFT bar lcd display panel |
|
Display Mode |
Normally Black |
|
Resolution |
280(RGB)x1424 |
|
Pixel pitch |
40(H) x3 x 120(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
38.20 (H)*181.47(V)*3.40(D) |
|
LCD AA |
33.60 (H)*170.88 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7703I |
|
Interface |
MIPI |
|
Backlight |
White LED |
|
Operating Temperature |
20℃~ +70℃ |
|
Storage Temperature |
30℃~ +80℃ |
|
Pin |
40pin |
Company Features
· Shenzhen Rongjiayi Technology Co., Ltd., known as a highly responsible enterprise, is taking effort to promote itself to a higher degree in the manufacturing of lcd mipi.
· We have a factory. Covering a large area and being equipped with advanced production machines, it enables us to provide a steady and adequate supply to customers. We have our own plant. It is equipped with a very wide range of manufacturing machines and has the ability to design, produce, and package the product needed. We have a state-of-the-art factory. Being fully equipped, it has a great production capacity and can manufacture customized designs to meet the uncountable requests from the lcd mipi market.
· We will become representative of the industry's innovation and creation. We will invest more in cultivating our R&D team, continuously promote technological innovation, and learn from other strong competitors to enhance ourselves.
Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of lcd mipi in the following section for your reference.
Application of the Product
The lcd mipi developed and produced by our company can be widely used in various industries and professional fields.
Rongjiayi always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Product Comparison
Compared with products in the same category, Rongjiayi's lcd mipi has the following outstanding features.
Shenzhen Rongjiayi Technology Co., Ltd., founded in 2014, has emerged as a prominent national high-tech enterprise, showcasing its prowess in research, development, design, and production.
