Rongjiayi-High-tech LCD display manufacturer with research, development, design since 2014.
Tft Lcd Manufacturers Supplier for Digital Signage
Product details of the tft lcd manufacturers
Product Information
The production of RJY display tft lcd manufacturers adopts internationally recognized standards. Its quality is secured before the loading. Shenzhen Rongjiayi Technology Co., Ltd. has improved its competition and carried out continuous research and development of tft lcd manufacturers over the years.
Product Description

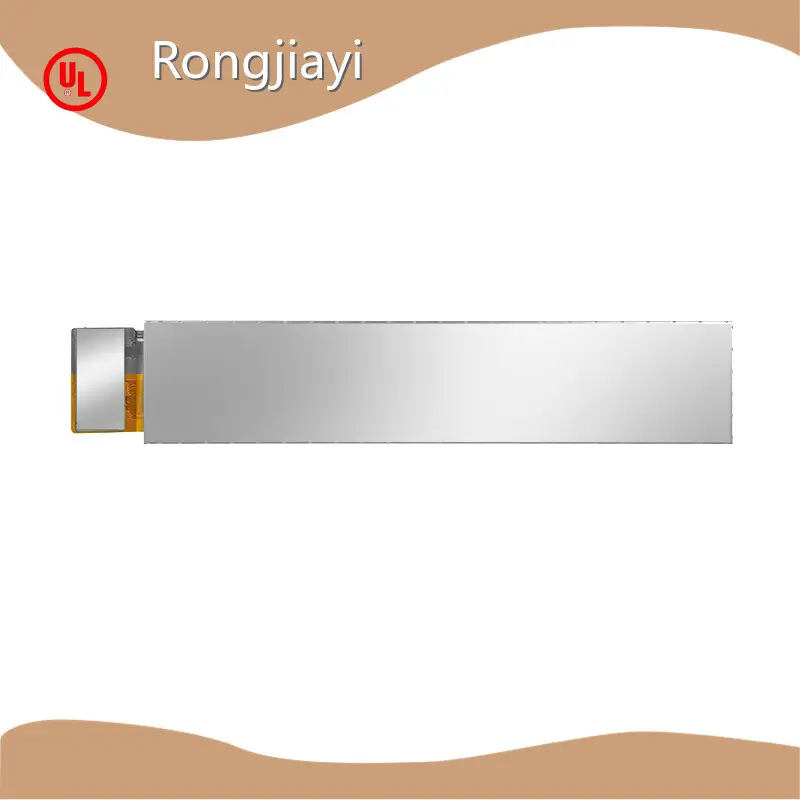

This display is designed to transform visual experiences with its unique stretched bar design, offering a perfect blend of aesthetics and functionality for diverse applications.
Product Features
1.Innovative Stretched Bar Design: The 6.9-inch stretched bar form factor introduces a new dimension to displays, making it an ideal choice for applications where space optimization and visual innovation are crucial.
2.Vivid Visuals with High Resolution (280*1424): Immerse yourself in stunning visuals with the high-resolution display, ensuring clarity and precision in showcasing content across a diverse range of applications.
3.Full Wide Viewing Angle (IPS): Embrace consistent and vibrant colors from any viewing angle, courtesy of Full Wide Viewing Angle (IPS) technology, enhancing the overall user experience.
4.Adaptive Brightness (TBD): The display's brightness, yet to be determined, adapts dynamically to ambient light conditions, ensuring optimal visibility and readability in varying environments.
5.MIPI Interface with ST7703I Driver IC: The combination of MIPI interface and ST7703I driver IC provides a robust and high-speed connection, facilitating seamless data transfer and ensuring smooth, responsive interactions for your electronic projects.
|
Model |
RV069LFM-350-40 |
|
LCD size |
6.90 inch TFT bar lcd display panel |
|
Display Mode |
Normally Black |
|
Resolution |
280(RGB)x1424 |
|
Pixel pitch |
40(H) x3 x 120(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
38.20 (H)*181.47(V)*3.40(D) |
|
LCD AA |
33.60 (H)*170.88 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7703I |
|
Interface |
MIPI |
|
Backlight |
White LED |
|
Operating Temperature |
20℃~ +70℃ |
|
Storage Temperature |
30℃~ +80℃ |
|
Pin |
40pin |
Company Advantage
• Rongjiayi has always provided customers with the best service solutions and has won high praise from customers.
• During the business operation, our company has skilled technical personnel to develop our products. And our experienced personnel are in charge of our company's management. All that guarantees the continuous development for our company.
• Our company was founded in After the continuous development for years, we have broken through various difficulties, accumulated rich experience and achieved excellent results. Now, we take a high position in the industry.
• The open and smooth traffic creates convenience for the transportation and timely supply of TFT LCD Display、Touch Screen.
Rongjiayi has a stock for TFT LCD Display、Touch Screen with regular specifications. We produce other products in bulk according to customers' orders. If you have any special needs, please contact us. You can tell us your product information, so we are sure about the specification.
Shenzhen Rongjiayi Technology Co., Ltd., founded in 2014, has emerged as a prominent national high-tech enterprise, showcasing its prowess in research, development, design, and production.
