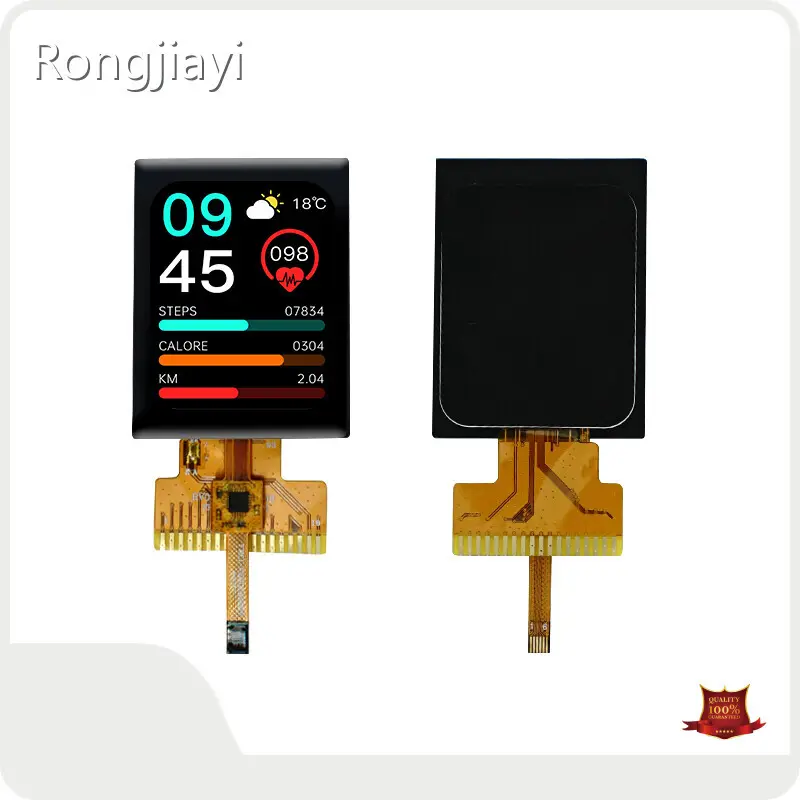

Presenting the RJY 1.69 Inch 240*280 TFT LCD Display, identified by the model name RV017YJP-500-18.
This display is engineered for superior visual performance, utilizing advanced technology to cater to a diverse range of application needs.
With a high-resolution screen, wide viewing angles, and customizable features, it stands out as a versatile solution for various electronic projects.
Product Features
1.High Resolution: This display panel boasts a high resolution of 240*280, ensuring clear and detailed images across a variety of applications.
2.Full Wide Viewing Angle (IPS): Utilizing Full Wide Viewing Angle (IPS) technology, it offers exceptional visibility from different angles, suitable for diverse user scenarios.
3.Driver IC - ST7789: Equipped with the ST7789 driver IC, ensuring outstanding performance and stability, guaranteeing smooth and detailed visuals.
4.SPI Interface: With an SPI interface, it provides high flexibility and customizability, making it adaptable to specific requirements of various projects.
5.Touch Structure - G+F: Featuring a G+F touch structure, it delivers an intuitive and responsive touch experience, enhancing user interaction with the device.
|
Model |
RV017YJP-500-18 |
|
Size |
1.69 inch LCD Module |
|
Display Mode |
Normally Black |
|
Resolution |
240(RGB)x280 |
|
Pixel pitch |
38.85(H)×3×116.55(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
30.7 (H)*37.43 (V)*2.30(D) |
|
LCD AA |
27.97 (H)* 32.63 (V) |
|
TP VA |
28.57*33.23 |
|
Colors |
16.7M |
|
Driver IC |
ST7789 |
|
Interface |
SPI |
|
Backlight |
White LED |
|
Touch IC |
CST816D |
|
Touch structure |
G+F |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
|
Power Supply voltage 1 |
VCI~GND: -0.3-4.6v |
|
Power Supply voltage 2 |
IOVCC~GND: -0.3-4.6v |
|
Logic Input Voltage Range |
VIN: -0.3- IOVCC+0.5v |
|
Logic Output Voltage Range |
VO: -0.3- IOVCC+0.5v |
|
Luminance |
500 cd/㎡ |
