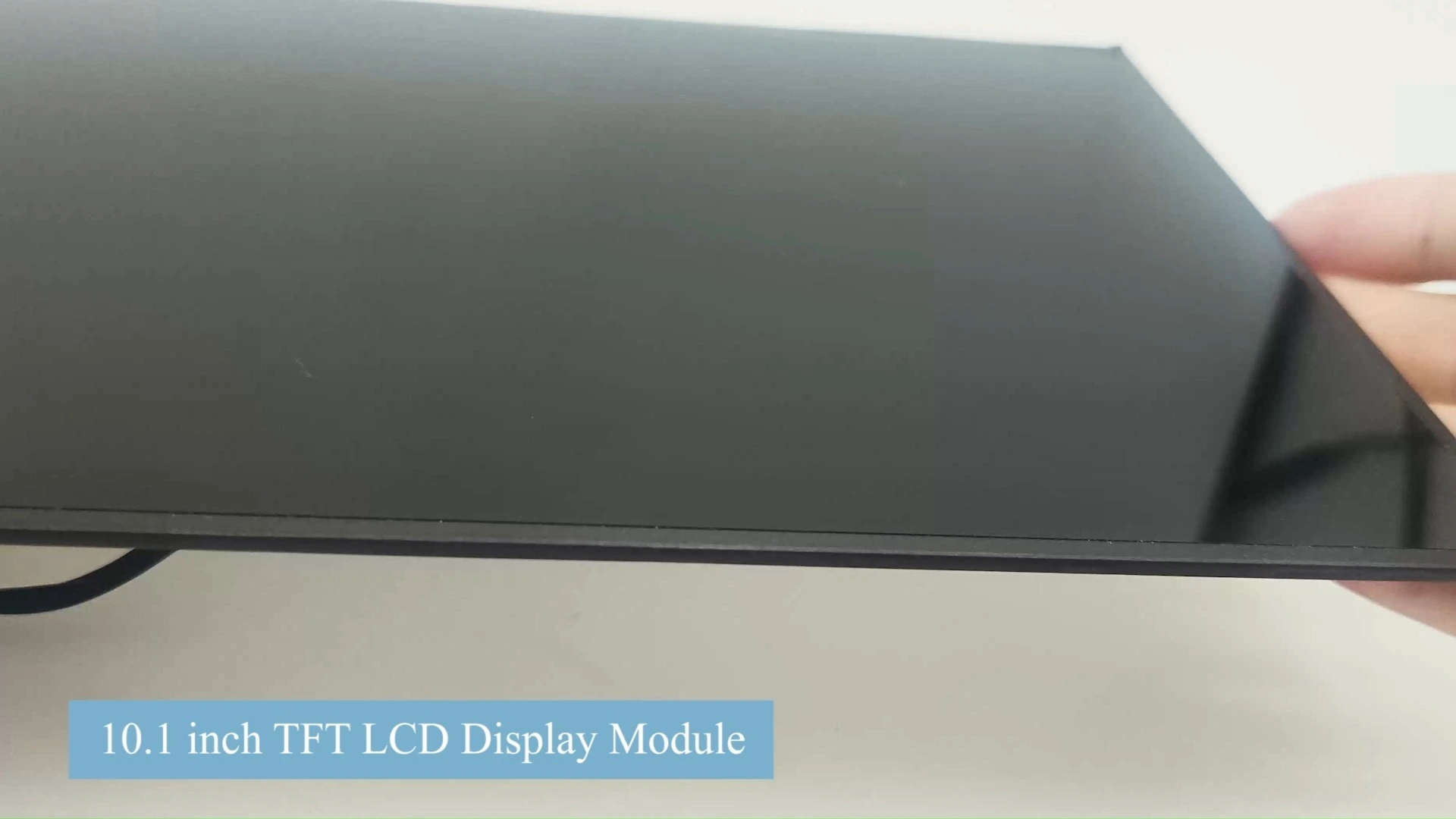

RJY 10.1 inch 800*800 High Resolution LCD Display Panel with Control Board
Model Name: GV101WXM-N85
LCD Type: 10.1-inch TFT LCD display
Resolution: 1280*800
Viewing Angle: Full wide viewing angle (IPS)
Active Area: 216.96(H) × 135.60(V)
Brightness: 430nit
Interface: LVDS
Operating Temperature: -20℃~ +70℃
Storage Temperature: -30℃~ +80℃
Product Description
There are different type 10.1 inch TFT LCD display panel, this one is 1280*800 resolution, without touch, if you need other type 10.1 inch LCD panel, please send us email to tell us your requirement, or check more in our shop.
Product Features
1.Exceptional Visual Clarity (1280*800): Immerse yourself in crystal-clear visuals on the expansive 10.1-inch display, featuring a high resolution of 1280*800 for unparalleled detail and sharpness.
2.Full Wide Viewing Angle (IPS): Experience vibrant and consistent visuals from any angle with IPS technology, ensuring optimal viewing in various settings and applications.
3.Impressive Brightness (430nit): The display boasts a brightness of 430nit, ensuring vivid and readable content even in challenging lighting conditions, making it suitable for both indoor and outdoor environments.
4.Efficient LVDS Interface: With an LVDS interface, the display offers efficient and high-speed data transmission, ensuring seamless connectivity with various devices and systems.
5.Adaptable to Varied Environments: Designed to operate in a wide temperature range from -20℃ to +70℃, this display is versatile and reliable, making it suitable for diverse applications across different environments and industries.
|
Model |
GV101WXM-N85 |
|
Size |
10.1 inch TFT LCD Panel |
|
Active area |
216.96(H) × 135.60(V) |
|
Number of pixels |
1280(H) × 800(V) |
|
Pixel pitch |
56.5(H) × 169.5(V) |
|
Pixel arrangement |
Pixels RGB stripe arrangement |
|
Display colors |
16.7M(6bits + Hi-FRC) |
|
Display mode |
Transmission mode. Normally Black |
|
Outline Dimension |
228.2× 148.85× 2.8max.(W/O PCBA) |
|
Surface Treatment |
AG25 |
|
Back-light |
Bottom edge side, 1-LED Lighting Bar Type |
|
Operating Temperature |
-20-70 ℃ |
|
Storage Temperature |
-30-70 ℃ |
