Rongjiayi-High-tech LCD display manufacturer with research, development, design since 2014.

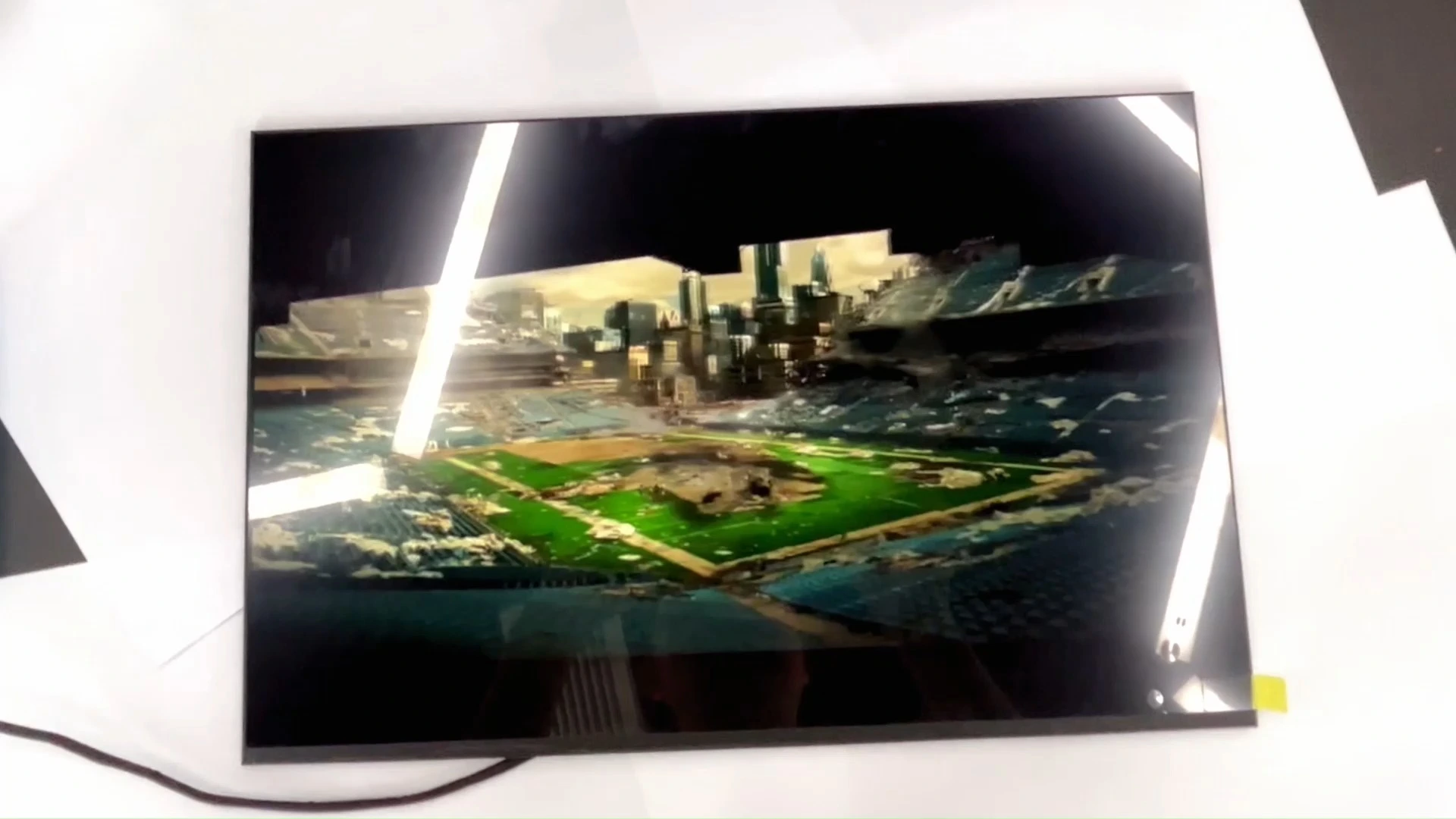

RJY 14 inch 1920*1200 TFT LCD Display RGB Interface For Laptop
Model Name: MB140DS01-2
LCD Type: 14-inch TFT LCD display
Resolution: 1920*1200
Viewing Angle: Full wide viewing angle (IPS)
Brightness: TBD (To be determined)
Interface: RGB
Active area: 301.594(H) × 188.496(V)
Product Description
Step into a realm of visual brilliance with the RJY 14 Inch 1920*1200 TFT LCD Display, meticulously crafted for laptops seeking a visual edge. Designed to redefine your computing experience, this display seamlessly integrates superior technology with
sleek design, promising clarity, and vibrancy.
Product Features
1.Crisp and Clear Resolution (1920*1200): Immerse yourself in a world of clarity and detail as the 14-inch display unfolds a vibrant canvas with a crisp resolution of 1920*1200 pixels, bringing content to life.
2.Panoramic Views with IPS Technology: Elevate your viewing experience with Full Wide Viewing Angle (IPS) technology, ensuring consistent and vivid colors from every angle, perfect for collaborative work and entertainment.
3.Adaptive Brightness, Tailored to You: The display's brightness, yet to be determined, dynamically adjusts to ambient lighting conditions, providing optimal visibility and reducing eye strain during extended use.
4.Versatile RGB Interface: Seamlessly connect to a variety of devices with the RGB interface, offering versatility and compatibility for a wide range of laptops, ensuring a hassle-free integration process.
5.Generous Active Area for Productivity: Maximize your productivity with a generous active area of 301.594(H) × 188.496(V), providing ample space for multitasking and content creation, making it an ideal companion for both work and leisure.
|
Model |
MB140DS01-2 |
|
Size |
14 inch TFT LCD Module |
|
Active area |
301.594(H) × 188.496(V) (mm) |
|
Number of pixels |
1920(H) × 1200(V) |
|
Pixel pitch |
0.1571(H) × 0.1571(V) (mm) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display colors |
16.7M (6bits+Hi-FRC) |
|
Color gamut |
NTSC 45% Typ |
|
Luminance of White |
345 cd/m2 max |
|
Display mode |
Normally Black |
|
Outline Dimension |
306.59±0.3(H)*197.5±0.3(V)*3Max (Without PCBA&FPC) |
|
Surface treatment |
Anti-Glare 25% |
|
Surface hardness |
3H |
|
Operating Temperature |
0-50 °C |
|
Storage Temperature |
-20-60 °C |
