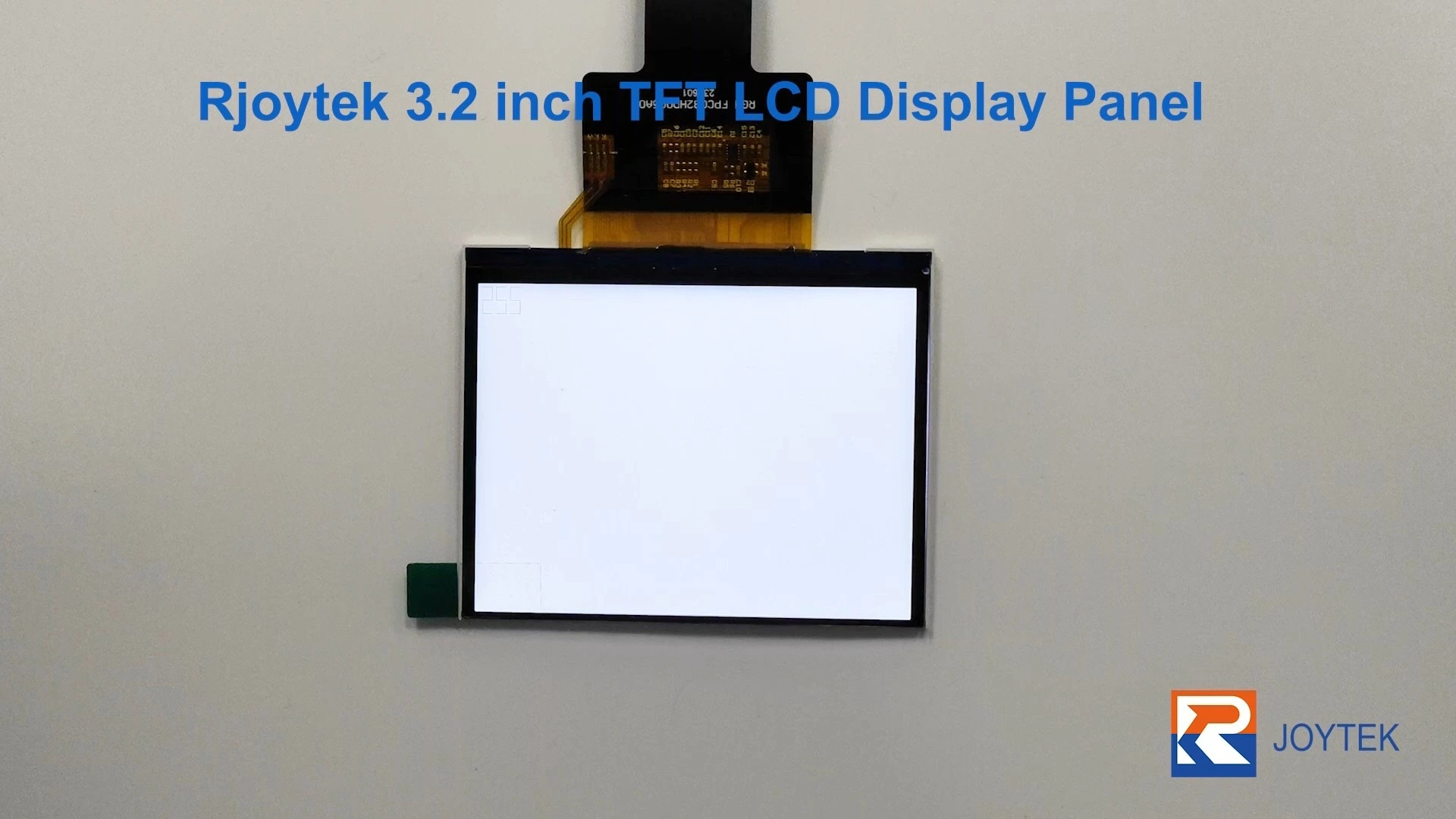

RJY 3.2 inch 1024*768 TFT LCD Display
Model Name: RV032WSM-500-30
LCD Type: 3.2-inch TFT LCD display
Resolution: 1024*768
Viewing Angle: Full wide viewing angle (IPS)
Brightness: 500nit
Driver IC: JD9168
Interface: MIPI
Operating Temperature: -20℃~ +70℃
Storage Temperature: -30℃~ +80℃
Product Description
Unveiling the RJY 1.69 Inch 240*280 TFT LCD Display, featuring the model name RV028QVP-350-10.
This display, with a 2.8-inch TFT LCD type and a resolution of 240320, is designed to deliver exceptional visual performance in a compact form factor.
With advanced features and a versatile interface, it caters to a wide range of electronic applications.
Product Features
1.Compact Form Factor: Despite its 2.8-inch size, this display offers a high resolution of 240*320, providing clear and vibrant visuals within a compact design.
2.Full Wide Viewing Angle (IPS): Leveraging Full Wide Viewing Angle (IPS) technology, the display ensures excellent visibility from various angles, enhancing user experience across different scenarios.
3.Driver IC - ST7789: Equipped with the reliable ST7789 driver IC, the display guarantees smooth and stable performance, delivering high-quality graphics and images.
4.SPI Interface: The SPI interface provides a versatile and customizable connection, allowing seamless integration into a variety of electronic projects with specific requirements.
5.Advanced Touch Technology: Featuring the FT6336U touch IC and a G+F touch structure, this display provides an advanced and responsive touch experience, enhancing user interaction in applications that require touch input.
|
Module |
RV032WSM-500-30 |
|
LCD Type |
Transmissive TFT , 16.7M color |
|
Size |
3.2 inch TFT LCD Module |
|
Number of Dots |
1024 X（RGB） X 768 |
|
Viewing Direction |
ALL |
|
LCM Outline Dimension |
69.60(H)X55.50(V) X2.1(T) mm |
|
Active area |
64.51(H) X48.38 (V) |
|
Operating temperature |
-20℃~70℃ |
|
Storage temperature |
-30℃~80℃ |
|
Driving IC |
JD9168 |
|
Supply voltage for logic |
VCC -3.2v |
|
Driver supply voltage |
VGH – VGL 0-30.0v |
|
View angle range (with polarizer) |
85/85/85/85 |
|
Contrast ratio |
1200 |
|
Luminance |
500 cd/㎡ |
|
Pin connect |
30pin |
