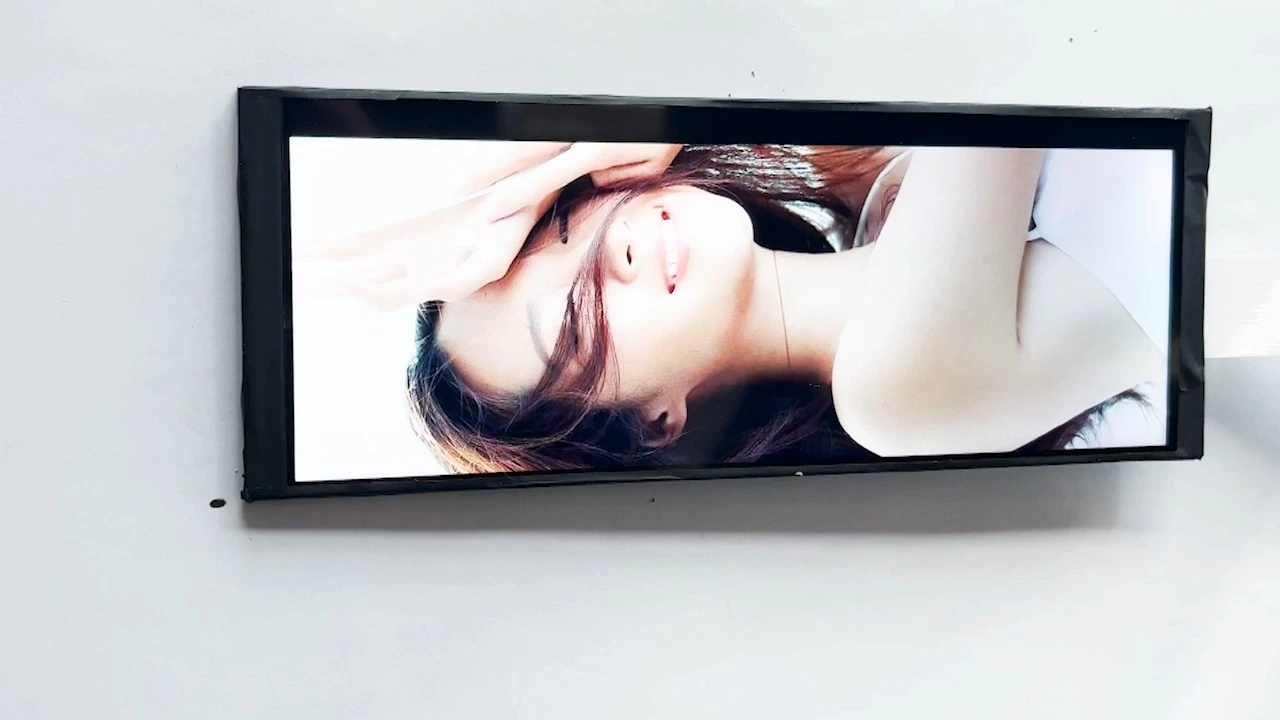

RJY 6.8 inch 480*1280 TFT High contrast LCD Display
Model Name: RV068Y0M-TBD-40
LCD Type: 6.8-inch TFT LCD display
Resolution: 480*1280
Viewing Angle: Full wide viewing angle (IPS)
Display Color: 16.7M
IC Driver: ICN9707
Brightness: TBD (To be determined)
Interface: MIPI
Module Size: 65.75(W)×176.53(L)×4.15(T)
Active Area: 60.192(W) ×160.512(L)
Product Description
Experience a new dimension of clarity and contrast with the RJY 10.25 Inch 1920*720 TFT FHD High Contrast LCD Display. This display is meticulously crafted to deliver stunning visuals, making it the ideal choice for applications that demand uncompromised image quality.
Product Features
1. FHD Resolution (1920*720): Immerse yourself in a cinematic visual experience with Full HD resolution, bringing clarity and detail to every frame on the expansive 10.25-inch display.
2. Vivid Color Spectrum (16.7M): Enjoy true-to-life and vibrant colors with a wide color spectrum of 16.7 million, ensuring your content is displayed with precision and accuracy.
3. Full Wide Viewing Angle (IPS): No matter the angle, the IPS technology ensures a consistent and vivid display, making it suitable for collaborative work and enhancing the user experience.
4. Adaptive Brightness (TBD): The brightness, yet to be determined, adapts dynamically to ambient light conditions, optimizing visibility for various environments and scenarios.
5. Efficient LVDS Interface: The LVDS interface ensures efficient and high-speed data transfer, offering seamless connectivity and compatibility with a variety of devices and systems.
|
Model |
RV103Z7M-K10-50 |
|
Size |
10.25 inch TFT LCD display |
|
Active area |
243.648 (H) ×91.368 (V) |
|
Number of pixels |
1920(H) ×720(V) |
|
Pixel pitch |
0.1269 (H) ×0.1269 (V) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display colors |
16.7M(8bits) |
|
Color gamut |
NTSC 70% min |
|
Display mode |
Normally black |
|
Outline Dimension |
251.148±0.2(H)*101.098±0.2(V)*1.08(Without PCBA) |
|
Surface treatment |
HC |
|
Surface hardness |
3H |
|
Interface |
2 Port LVDS interface |
|
Operating Temperature |
-30-85 °C |
|
Storage Temperature |
-40-95 °C |
