Factory Direct High Brightness Lcd Monitor RJY Display Brand
Product details of the high brightness lcd monitor
Quick Detail
The structure of RJY display high brightness lcd monitor is more compact so as to effectively reduce labor intensity and shorten operating time. The value of high brightness lcd monitor are recognized by most industry insider. Rongjiayi's high brightness lcd monitor can meet the different needs of customers. The product, providing a great probability for users, has an extensive application in the global market.
Product Introduction
In order to strengthen your understanding of high brightness lcd monitor, Rongjiayi will show you the specific details of high brightness lcd monitor in the following section.
Product Description

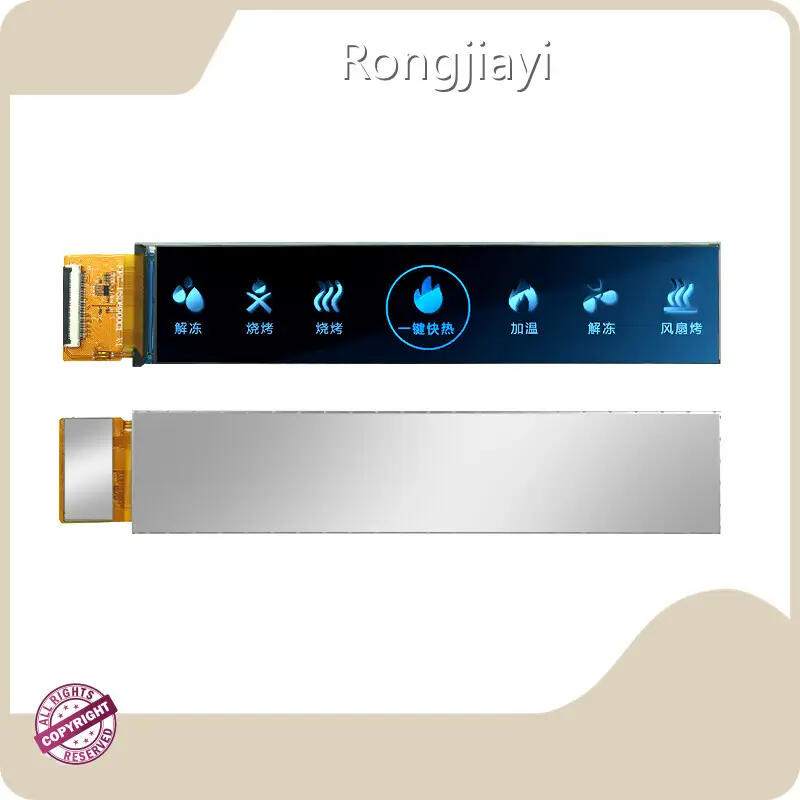

This display is designed to transform visual experiences with its unique stretched bar design, offering a perfect blend of aesthetics and functionality for diverse applications.
Product Features
1. Innovative Stretched Bar Design: The 6.9-inch stretched bar form factor introduces a new dimension to displays, making it an ideal choice for applications where space optimization and visual innovation are crucial.
2. Vivid Visuals with High Resolution (280*1424): Immerse yourself in stunning visuals with the high-resolution display, ensuring clarity and precision in showcasing content across a diverse range of applications.
3. Full Wide Viewing Angle (IPS): Embrace consistent and vibrant colors from any viewing angle, courtesy of Full Wide Viewing Angle (IPS) technology, enhancing the overall user experience.
4. Adaptive Brightness (TBD): The display's brightness, yet to be determined, adapts dynamically to ambient light conditions, ensuring optimal visibility and readability in varying environments.
5. MIPI Interface with ST7703I Driver IC: The combination of MIPI interface and ST7703I driver IC provides a robust and high-speed connection, facilitating seamless data transfer and ensuring smooth, responsive interactions for your electronic projects.
|
Model |
RV069LFM-350-40 |
|
LCD size |
6.90 inch TFT bar lcd display panel |
|
Display Mode |
Normally Black |
|
Resolution |
280(RGB)x1424 |
|
Pixel pitch |
40(H) x3 x 120(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
38.20 (H)*181.47(V)*3.40(D) |
|
LCD AA |
33.60 (H)*170.88 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7703I |
|
Interface |
MIPI |
|
Backlight |
White LED |
|
Operating Temperature |
20℃~ +70℃ |
|
Storage Temperature |
30℃~ +80℃ |
|
Pin |
40pin |
