Product details of the high brightness lcd monitor
Product Information
Our international designers can help you to design high brightness lcd monitor. Quality-focused: the product is a result of pursuing high quality. It is strictly inspected under the QC team who has the full right to take charge of the quality of the product. This product has good economic and social benefits.
Product Description

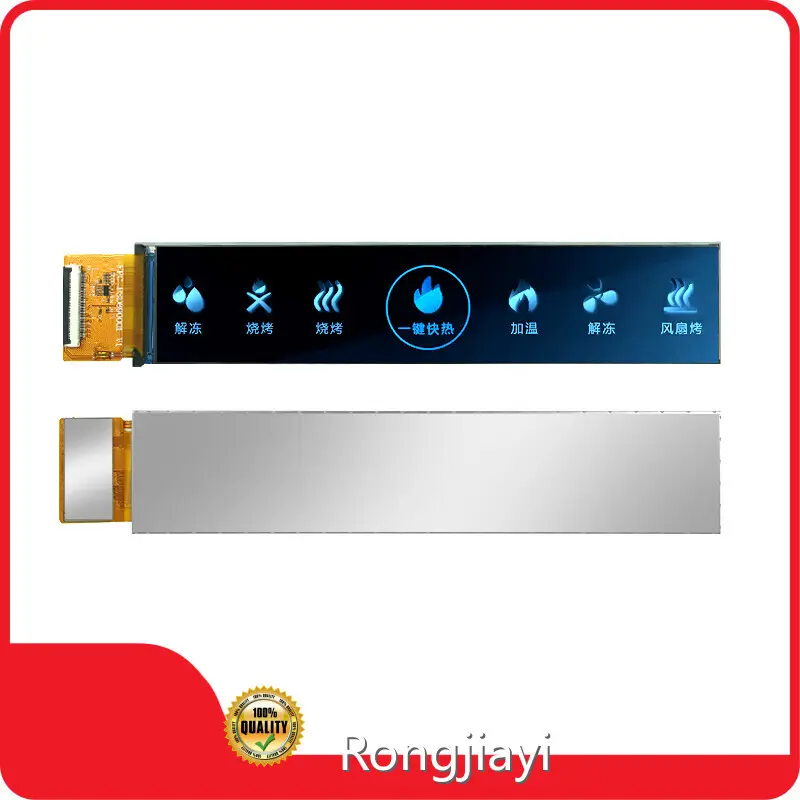

This display is designed to transform visual experiences with its unique stretched bar design, offering a perfect blend of aesthetics and functionality for diverse applications.
Product Features
1. Innovative Stretched Bar Design: The 6.9-inch stretched bar form factor introduces a new dimension to displays, making it an ideal choice for applications where space optimization and visual innovation are crucial.
2. Vivid Visuals with High Resolution (280*1424): Immerse yourself in stunning visuals with the high-resolution display, ensuring clarity and precision in showcasing content across a diverse range of applications.
3. Full Wide Viewing Angle (IPS): Embrace consistent and vibrant colors from any viewing angle, courtesy of Full Wide Viewing Angle (IPS) technology, enhancing the overall user experience.
4. Adaptive Brightness (TBD): The display's brightness, yet to be determined, adapts dynamically to ambient light conditions, ensuring optimal visibility and readability in varying environments.
5. MIPI Interface with ST7703I Driver IC: The combination of MIPI interface and ST7703I driver IC provides a robust and high-speed connection, facilitating seamless data transfer and ensuring smooth, responsive interactions for your electronic projects.
|
Model |
RV069LFM-350-40 |
|
LCD size |
6.90 inch TFT bar lcd display panel |
|
Display Mode |
Normally Black |
|
Resolution |
280(RGB)x1424 |
|
Pixel pitch |
40(H) x3 x 120(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
38.20 (H)*181.47(V)*3.40(D) |
|
LCD AA |
33.60 (H)*170.88 (V) |
|
Colors |
16.7M |
|
Driver IC |
ST7703I |
|
Interface |
MIPI |
|
Backlight |
White LED |
|
Operating Temperature |
20℃~ +70℃ |
|
Storage Temperature |
30℃~ +80℃ |
|
Pin |
40pin |
