Rongjiayi-High-tech LCD display manufacturer with research, development, design since 2014.
Hot Tft Display Touch RJY Display Brand
Product details of the tft display touch
Quick Overview
RJY display tft display touch has a user-friendly design featuring both functionality and aesthetics. This product has a long service life while delivering constantly high quality. Now the large-scale production, sales and logistics network of Shenzhen Rongjiayi Technology Co., Ltd. covers many provinces, cities and autonomous regions in China.
Product Introduction
Choose our tft display touch for the following reasons.
Product Description

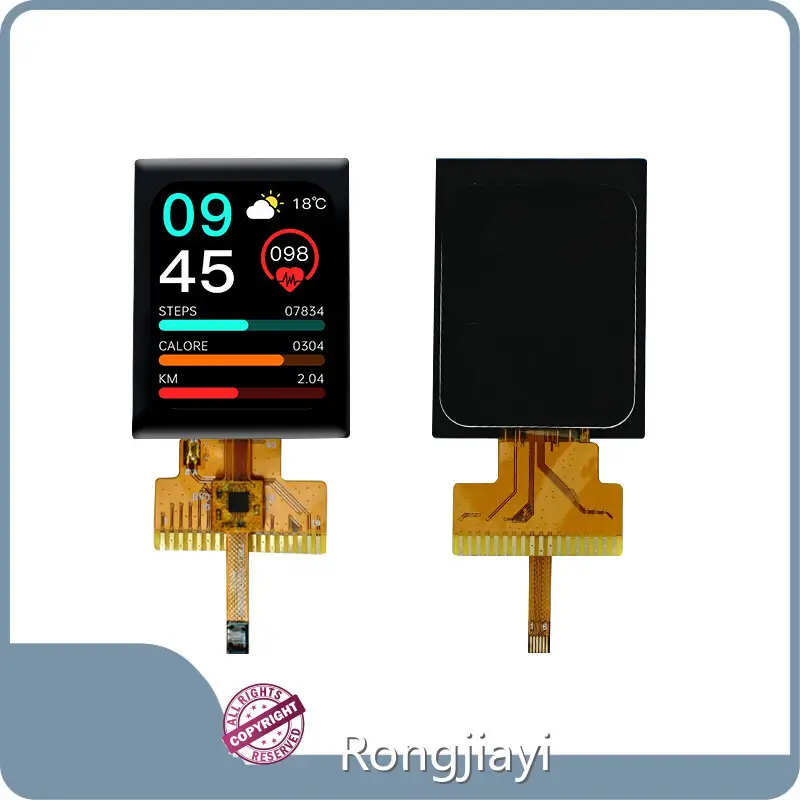

Presenting the RJY 1.69 Inch 240*280 TFT LCD Display, identified by the model name RV017YJP-500-18.
This display is engineered for superior visual performance, utilizing advanced technology to cater to a diverse range of application needs.
With a high-resolution screen, wide viewing angles, and customizable features, it stands out as a versatile solution for various electronic projects.
Product Features
1.High Resolution: This display panel boasts a high resolution of 240*280, ensuring clear and detailed images across a variety of applications.
2.Full Wide Viewing Angle (IPS): Utilizing Full Wide Viewing Angle (IPS) technology, it offers exceptional visibility from different angles, suitable for diverse user scenarios.
3.Driver IC - ST7789: Equipped with the ST7789 driver IC, ensuring outstanding performance and stability, guaranteeing smooth and detailed visuals.
4.SPI Interface: With an SPI interface, it provides high flexibility and customizability, making it adaptable to specific requirements of various projects.
5.Touch Structure - G+F: Featuring a G+F touch structure, it delivers an intuitive and responsive touch experience, enhancing user interaction with the device.
|
Model |
RV017YJP-500-18 |
|
Size |
1.69 inch LCD Module |
|
Display Mode |
Normally Black |
|
Resolution |
240(RGB)x280 |
|
Pixel pitch |
38.85(H)×3×116.55(V) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Viewing direction |
ALL |
|
Module outline dimension |
30.7 (H)*37.43 (V)*2.30(D) |
|
LCD AA |
27.97 (H)* 32.63 (V) |
|
TP VA |
28.57*33.23 |
|
Colors |
16.7M |
|
Driver IC |
ST7789 |
|
Interface |
SPI |
|
Backlight |
White LED |
|
Touch IC |
CST816D |
|
Touch structure |
G+F |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
|
Power Supply voltage 1 |
VCI~GND: -0.3-4.6v |
|
Power Supply voltage 2 |
IOVCC~GND: -0.3-4.6v |
|
Logic Input Voltage Range |
VIN: -0.3- IOVCC+0.5v |
|
Logic Output Voltage Range |
VO: -0.3- IOVCC+0.5v |
|
Luminance |
500 cd/㎡ |
Company Advantages
As a modern company, Shenzhen Rongjiayi Technology Co., Ltd. is professionally engaged in the production, processing and sales of TFT LCD Display、Touch Screen. Adhering to the spirit of 'being people-oriented, seeking mutual benefit', our company is willing to work with like-minded friends around the world to realize the ideal and return to the society. Our company has set up a professional production team and it is an indispensable human resource for us. Based on advanced production concepts, our team members strive to produce high-quality products that satisfy customers. Rongjiayi has been engaged in the production of TFT LCD Display、Touch Screen for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.
With rich experience and exquisite technology, we are looking forward to building good cooperation with partners from all walks of life and creating a better tomorrow!
Shenzhen Rongjiayi Technology Co., Ltd., founded in 2014, has emerged as a prominent national high-tech enterprise, showcasing its prowess in research, development, design, and production.
