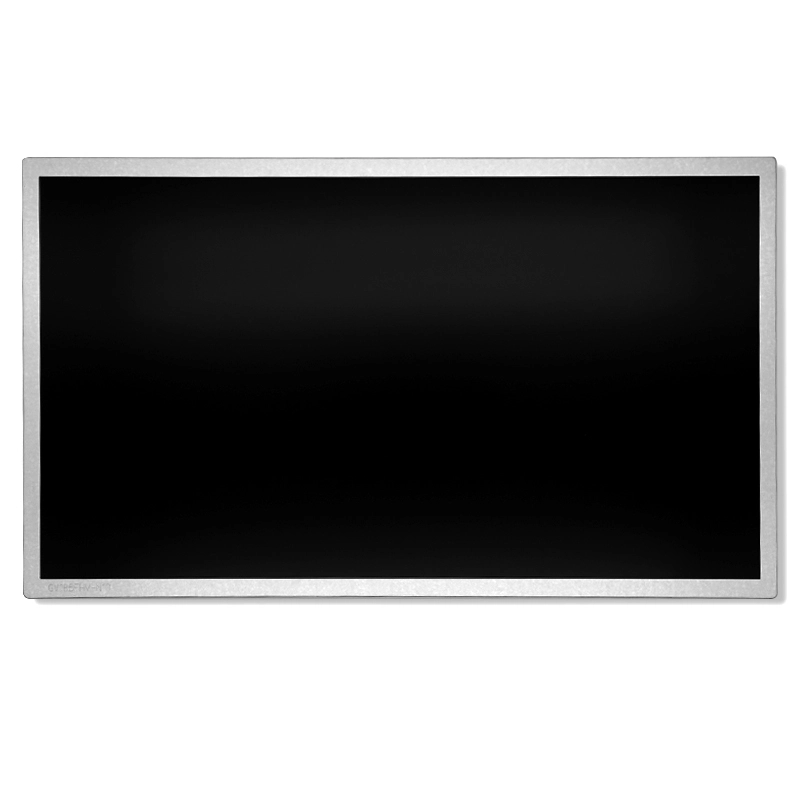

RJY 18.5 inch 1920*1080 TFT LCD Display Panel
Model Name: GV185FHM-N10
LCD Type: 1.54-inch TFT LCD display
Resolution: 1920*1080
Viewing Angle: Full wide viewing angle (IPS)
Interface: LVDS
Brightness: TBD (To be determined)
Active area: 408.96 (H) × 230.04(V)
Operating Temperature: -20℃~ +70℃
Storage Temperature: -30℃~ +80℃
Product Description
Introducing the RJY 18.5 Inch 1920*1080 TFT LCD Display Panel, a visual powerhouse designed to elevate your viewing experience. With its impressive resolution and wide viewing angle, this display panel offers versatility for applications ranging from multimedia presentations to interactive kiosks.
Product Features
High-Resolution Clarity (1920*1080): Immerse yourself in stunning visuals on the expansive 18.5-inch TFT LCD display, featuring a resolution of 1920*1080 pixels for crystal-clear images.
1. Full Wide Viewing Angle (IPS): Enjoy consistent and vibrant visuals from any perspective with IPS technology, ensuring optimal visibility for a diverse range of applications.
2. Customizable Interface Options (LVDS): The display panel supports a customizable LVDS interface, providing flexibility for different interface driving boards to suit your specific requirements.
3. Generous Active Area (408.96 (H) × 230.04(V)): The spacious active area enhances content display, making it ideal for applications where visual impact is crucial.
4. Temperature Resilience: Engineered to withstand various environmental conditions, the display panel operates flawlessly in temperatures ranging from -20℃ to +70℃, ensuring reliability in diverse settings.
|
Model |
GV185FHM-N10 |
|
Size |
18.5 inch LCD Panel |
|
Active area |
408.96 (H) × 230.04(V) |
|
Number of pixels |
1920(H) × 1080(V) |
|
Pixel pitch |
0.213(H) × 0.213 (V) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display colors |
16.7M(8bit) |
|
Display mode |
Normally Black |
|
Dimensional outline |
430.4 (H) × 254.6(V) × 12(D) typ. |
|
Surface treatment |
AG25, 3H |
|
Back-light |
Edge side, 1-LED Lighting Bar Type |
|
Luminance |
350 nit |
|
Pin |
30 pin |
